Description

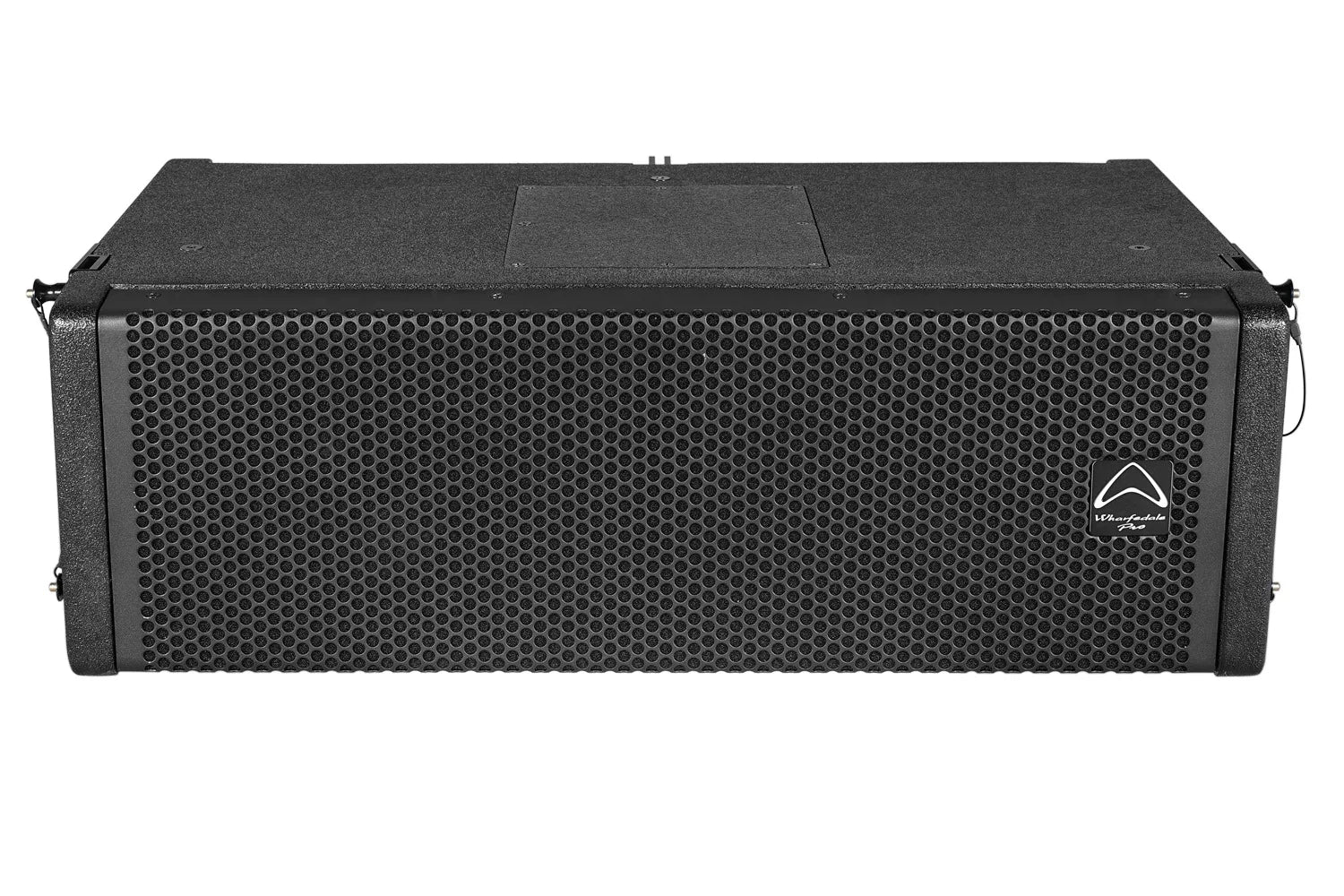

WLA-28A

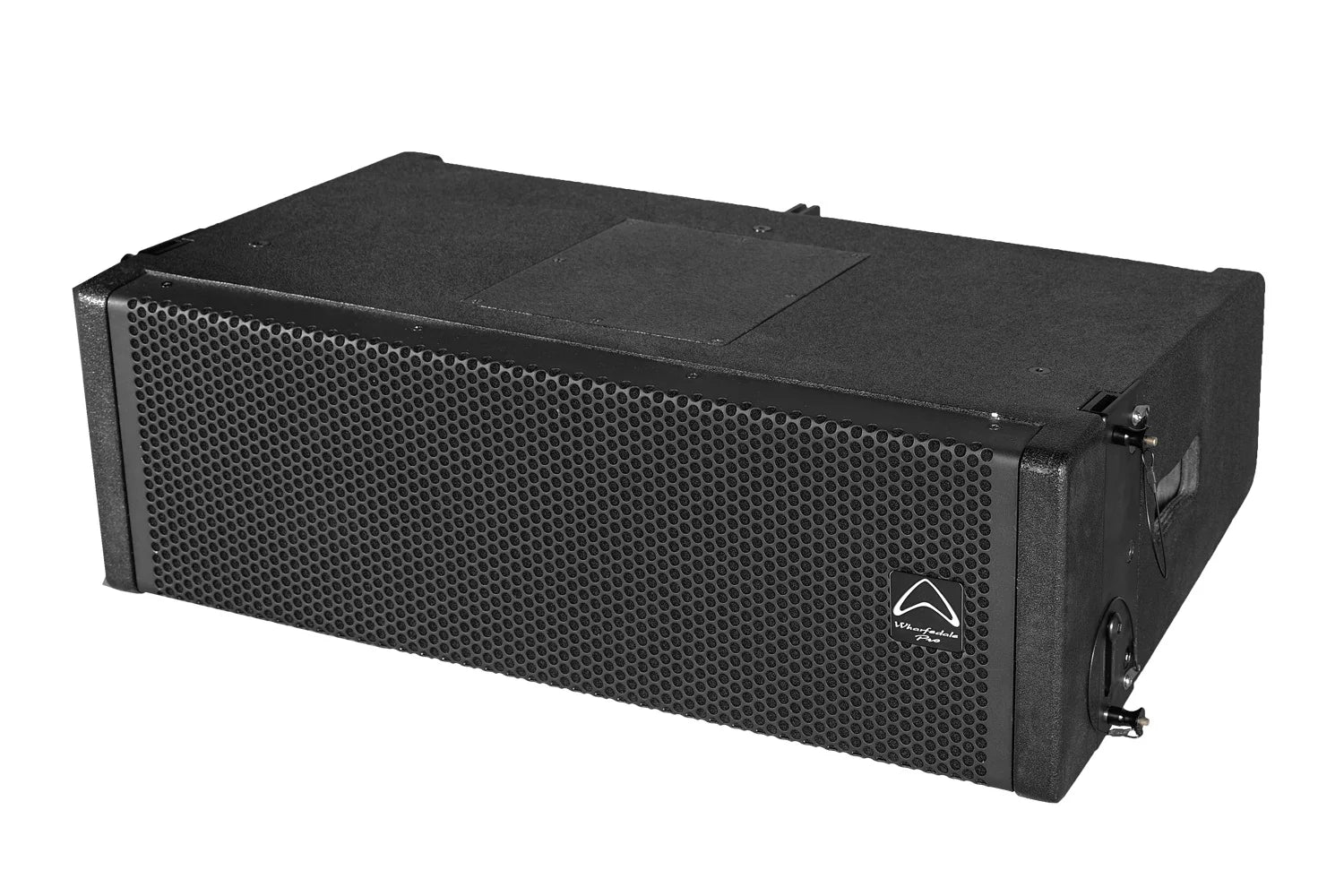

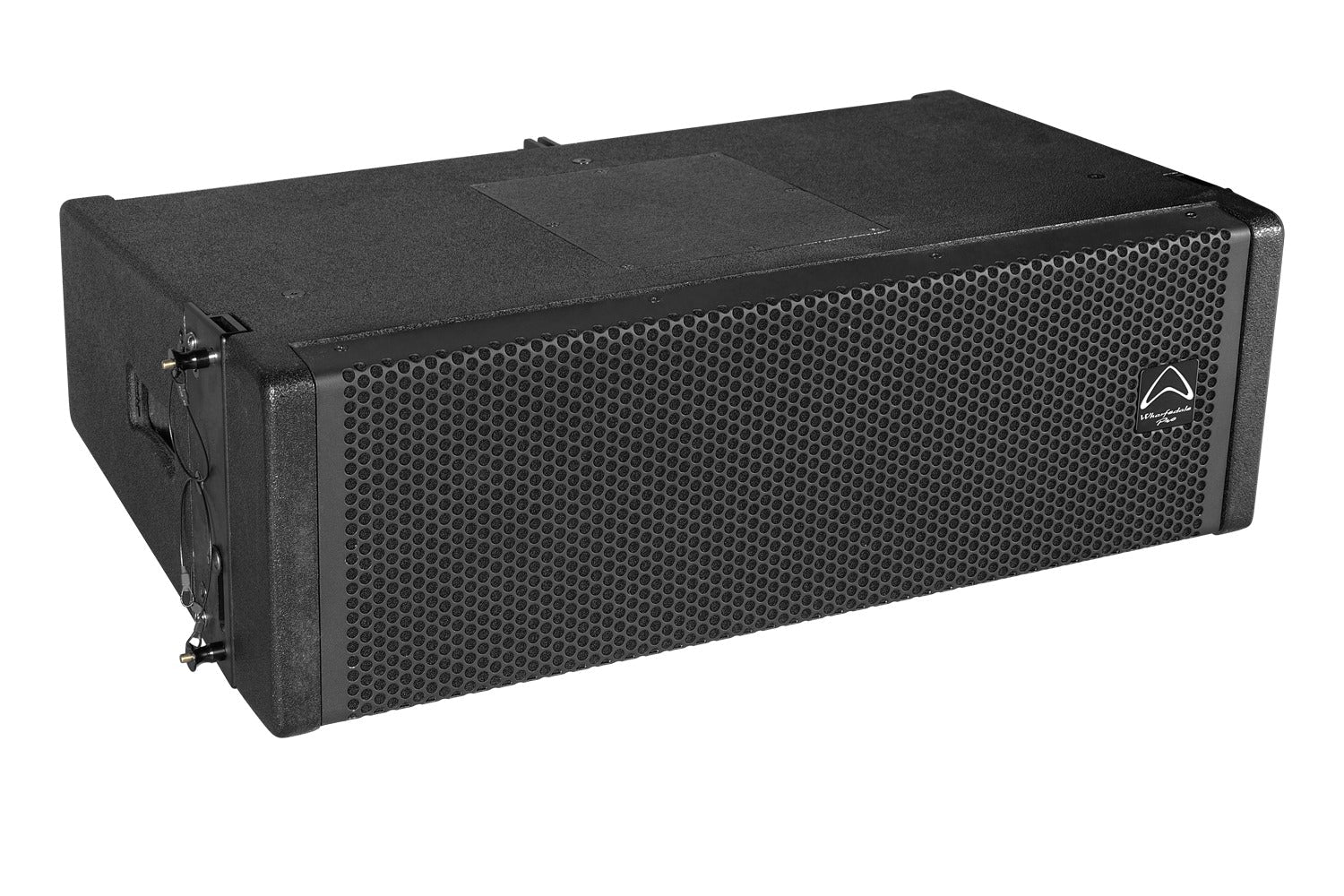

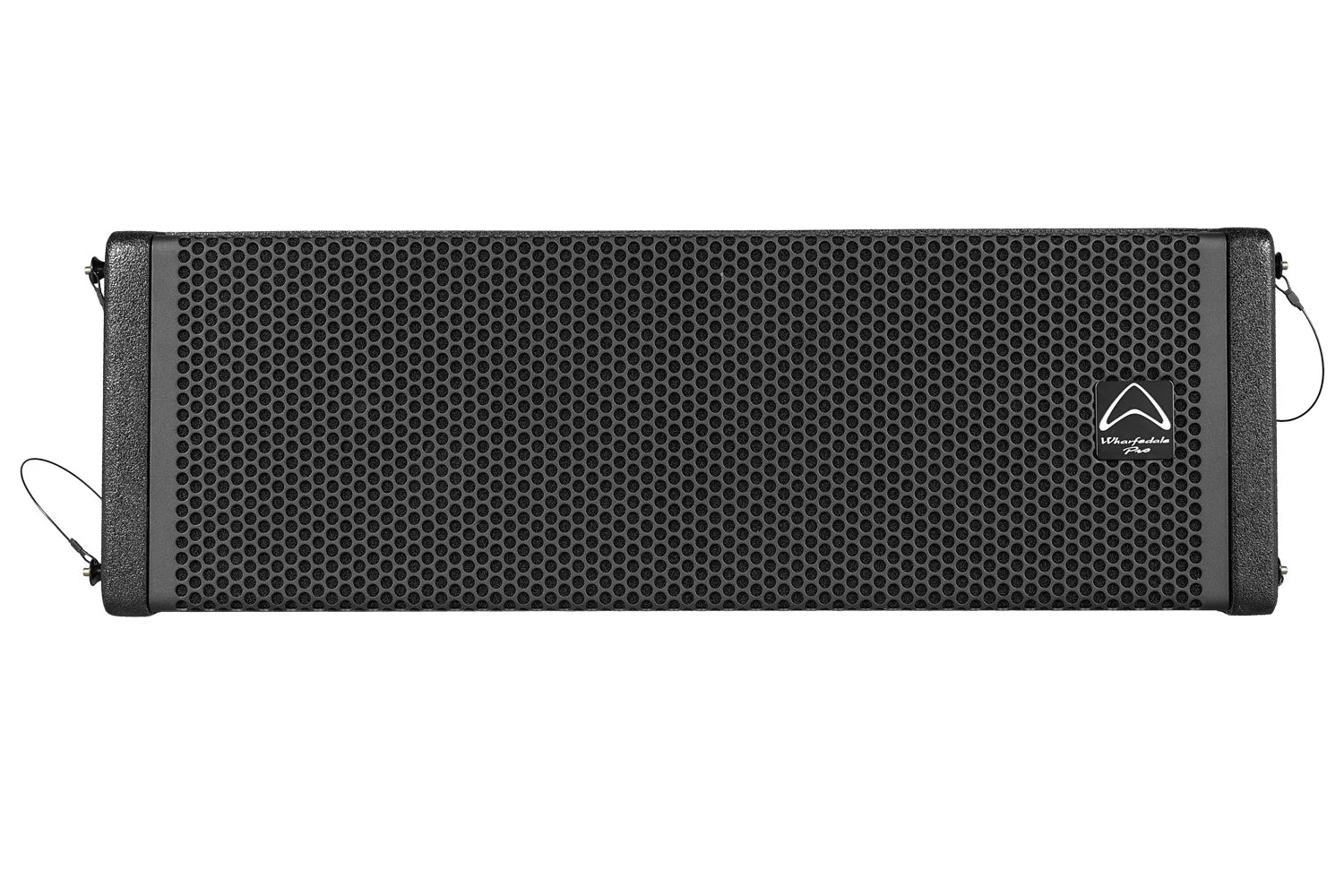

WLA-28A - 2 x 8" active element. Birch plywood construction. Internal DSP with FIR filters. Software control over RS485 protocol.
DUAL 8"
At the heart of the WLA-28A are 2 x 8″ custom Wharfedale Pro LF drivers.
These feature 2.0″ voice coils to ensure high efficiency and high power handling.
These perfectly matched custom transducers are what give a WLA-28A system that special sonic impact.
INTERNAL DSP WITH FIR
8 x DSP Presets – built in – including FIR.
Easy to get great results – fast.

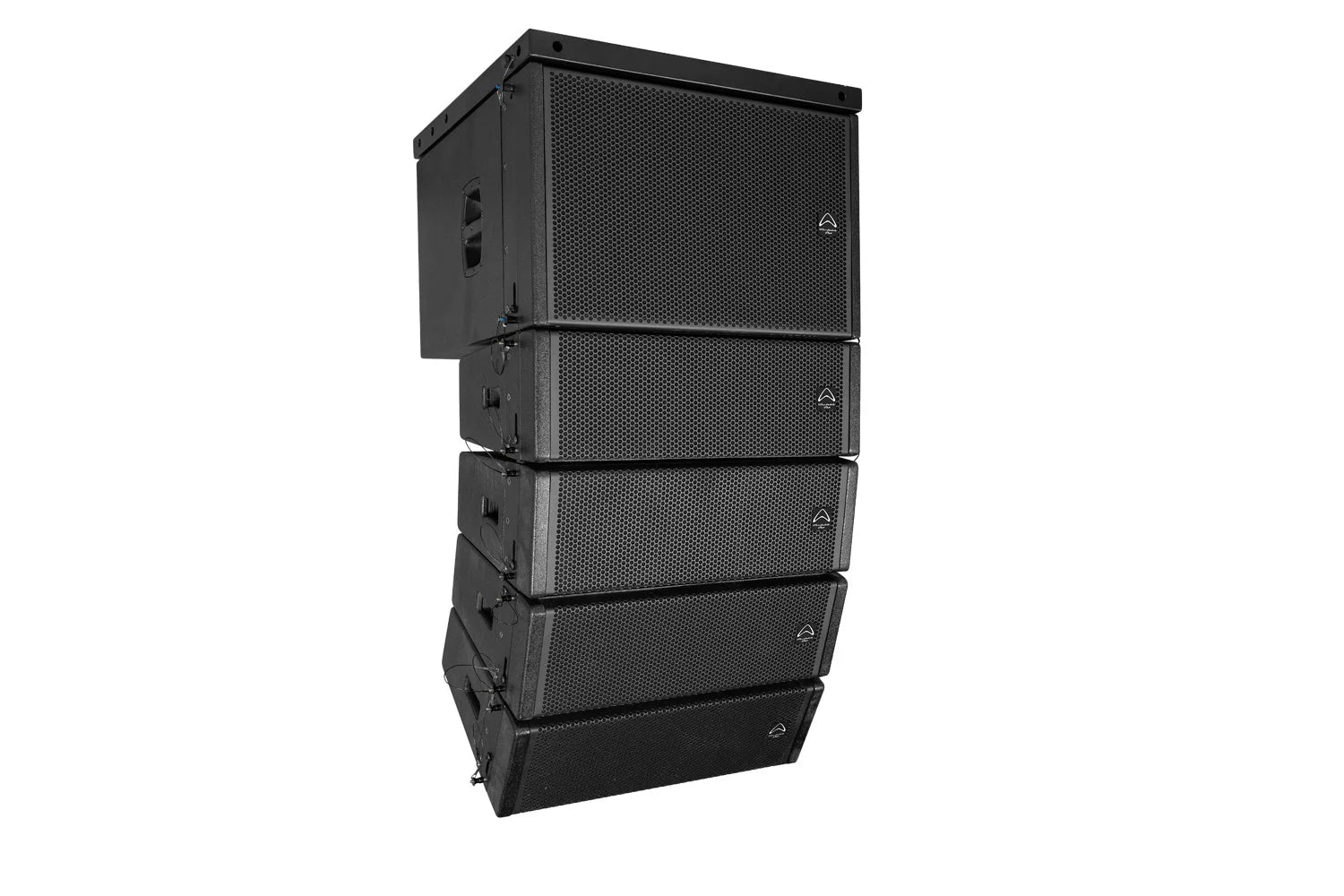

For the subwoofers (WLA-28SUBA and WLA-218BA) the AUDIENCE or STAGE presets can be used in an Inverted Stack Gradient array configuration.
ABOUT THE CLARITY
The new neo HF compression driver delivers additional clarity and performance with enhanced definition.
It is custom made by Wharfedale Pro and is coupled to a 100° x 10° waveguide.
SOFTWARE CONTROL
The network connection uses RS485 protocol and gives GUI control over the DSP parameters of each element in the array.
SPECIFICATIONS
| Model Name | WLA-28A |
|---|---|
| System Type | Active 8” 2-way Bi-Amplified |
| Frequency Response (+/-3 dB) | 60 Hz – 20 KHz |
| Frequency Range (-10 dB) | 55 Hz – 20 KHz |
| Loudspeaker Sensitivity @ 1 W / 1 m) | 100 dB |
| Maximum SPL(peak)(@1 m) | 132 dB |
| Nominal Coverage (H x V) | 100° x 10° |
| Signal Processing | DSP based, 8 FIR presets resident in Input Module |
| Preset list | A) 1 SPKR 100 Hz HPF B) 2 to 4 SPKR 100 Hz HPF C) 4 to 8 SPKR 100 Hz HPF D) >8 SPKR 100 Hz HPF E) 2 to 4 SPKR F) 4 to 8 SPKR G) >8 SPKR H) CUSTOM |
| Amplifiers | |
| Amplifier Design | Class D |
| Power Rating: | 1500 W Peak (1300 W LF + 200 W HF), 750 W Continuous (650 W LF + 100 W HF) |
| Power On Protection | Power switch on/off mute |
| Thermal Protection | Amplifier Shut Down. Auto Reset |
| Low Line Voltage Shut Down | 80% Nominal Line Voltage |
| Driver Protection | Independent L/ H Limiters and DC |
| DC and Short Protection | Yes |
| Limiter Indicator | Red LED |
| Signal Indicator | Green LED |
| Power/Active Indicator | White LED |
| Find Function Indicator | Blue LED |
| Input Sensitivity | +4 dBu |
| Maximum Input Level | +18 dBu |
| Input Impedance | Balanced: 10 KΩ |
| AC Power details – Power Supply | High Efficiency Switching Mode Power Supply |

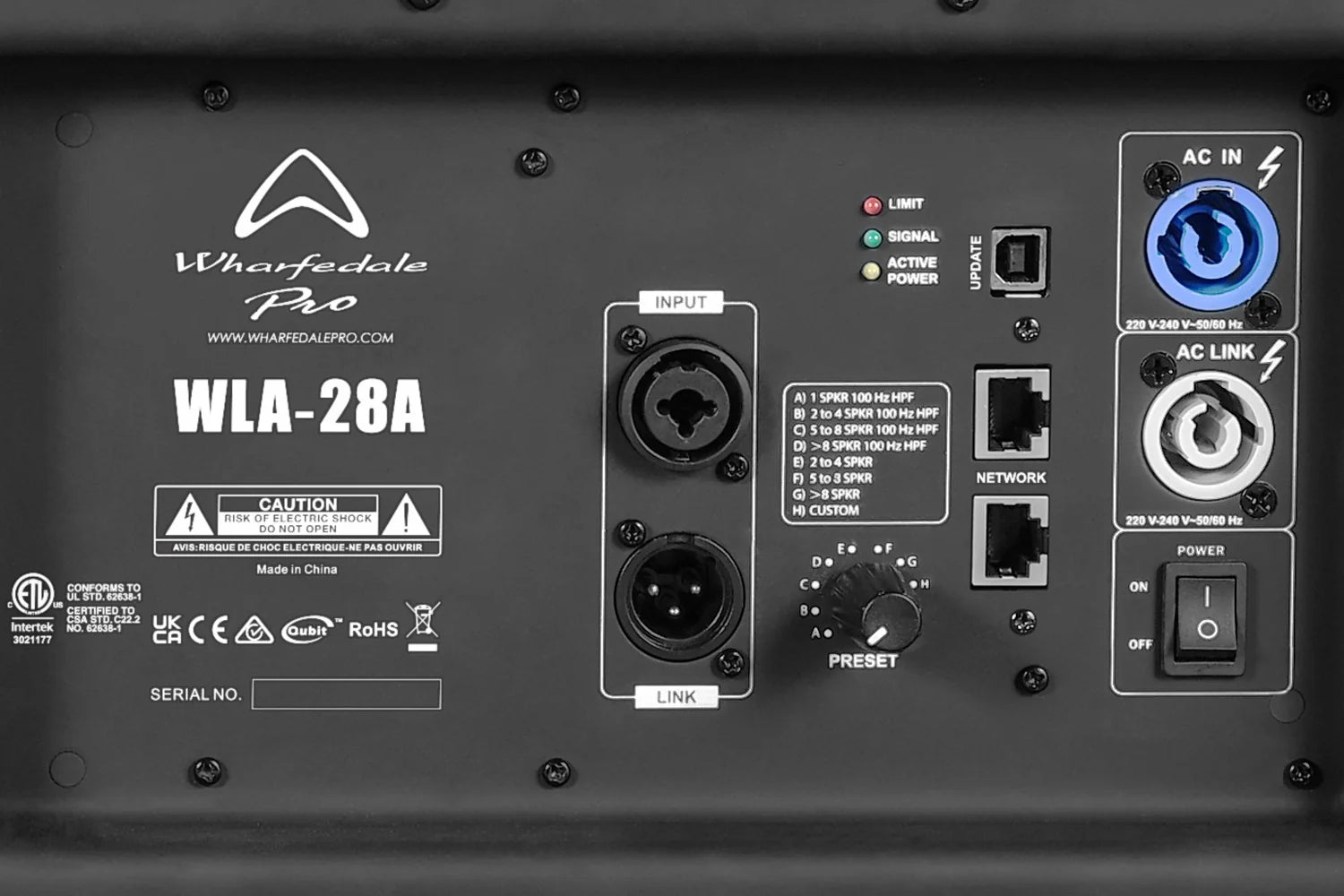

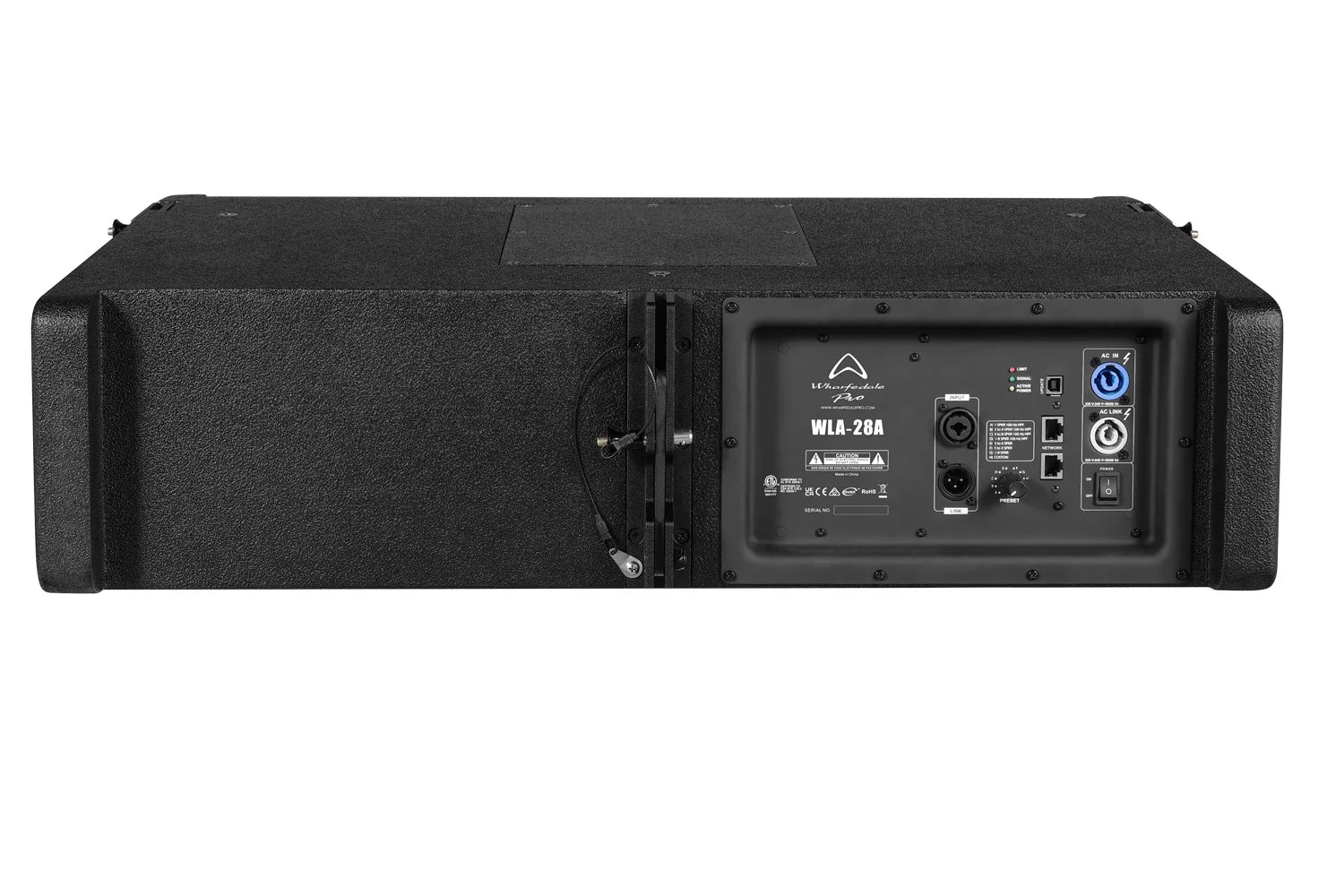

| Connectors | |
| Input Connector | XLR 1/ 4〞Combo jack |
| Link Connector | Balanced XLR pin Connector |
| UPDATE | USB Type B |
| NETWORK (RS485) | RJ45 |
| AC Power Options | AC 100-120 V~/ 220-240 V~,50/60 HZ |
| AC Input Connector | powerCON |
| AC Loop Through Connector | powerCON |

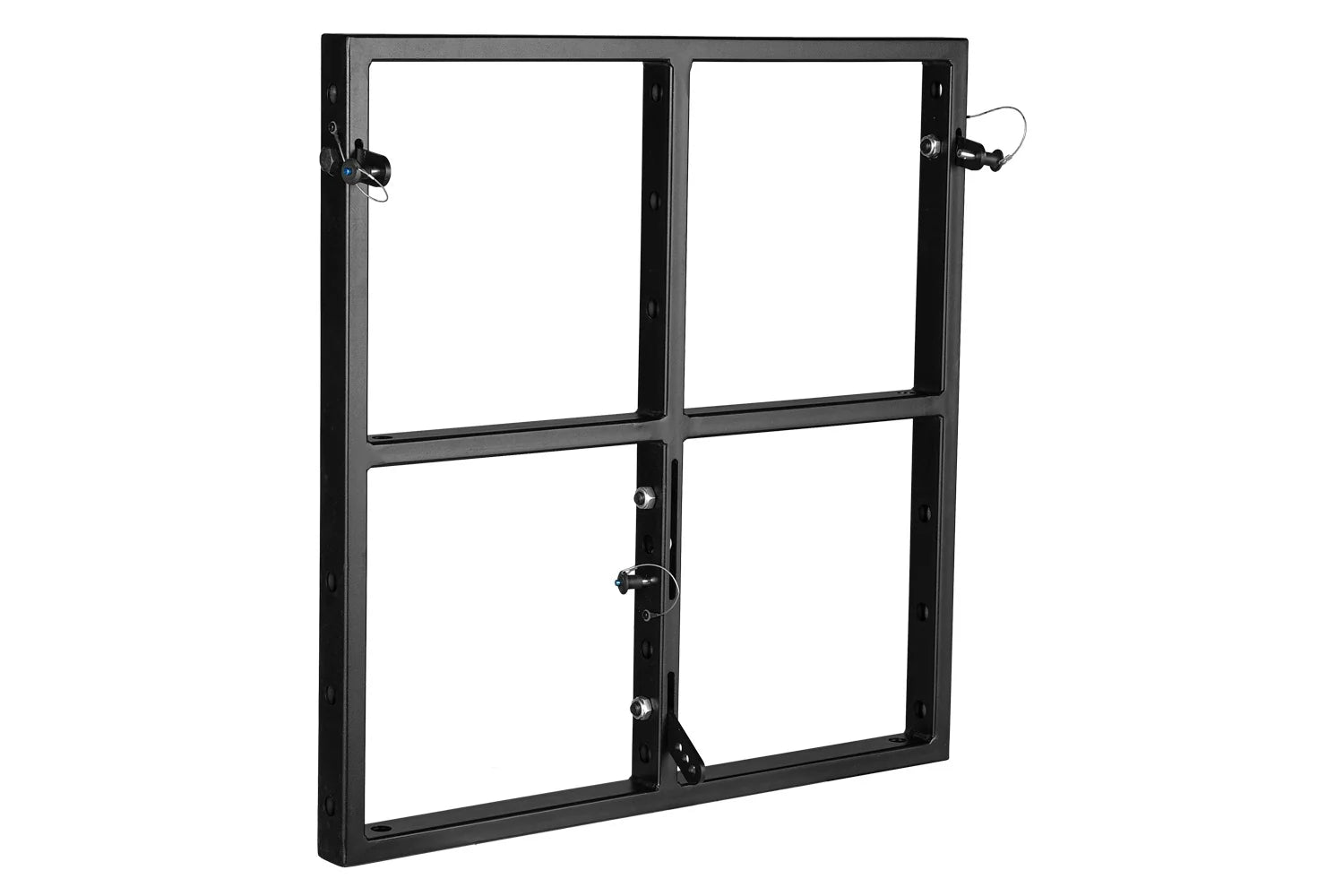

| Hardware – Rigging | Integral side plate adjustable rigging 0°-10° |
| Enclosure Material and finish | 15 mm / 18 mm Plywood |
| Colour Options | Black Rhino Paint |
| Grille Material & Finish | 1.5 Steel |

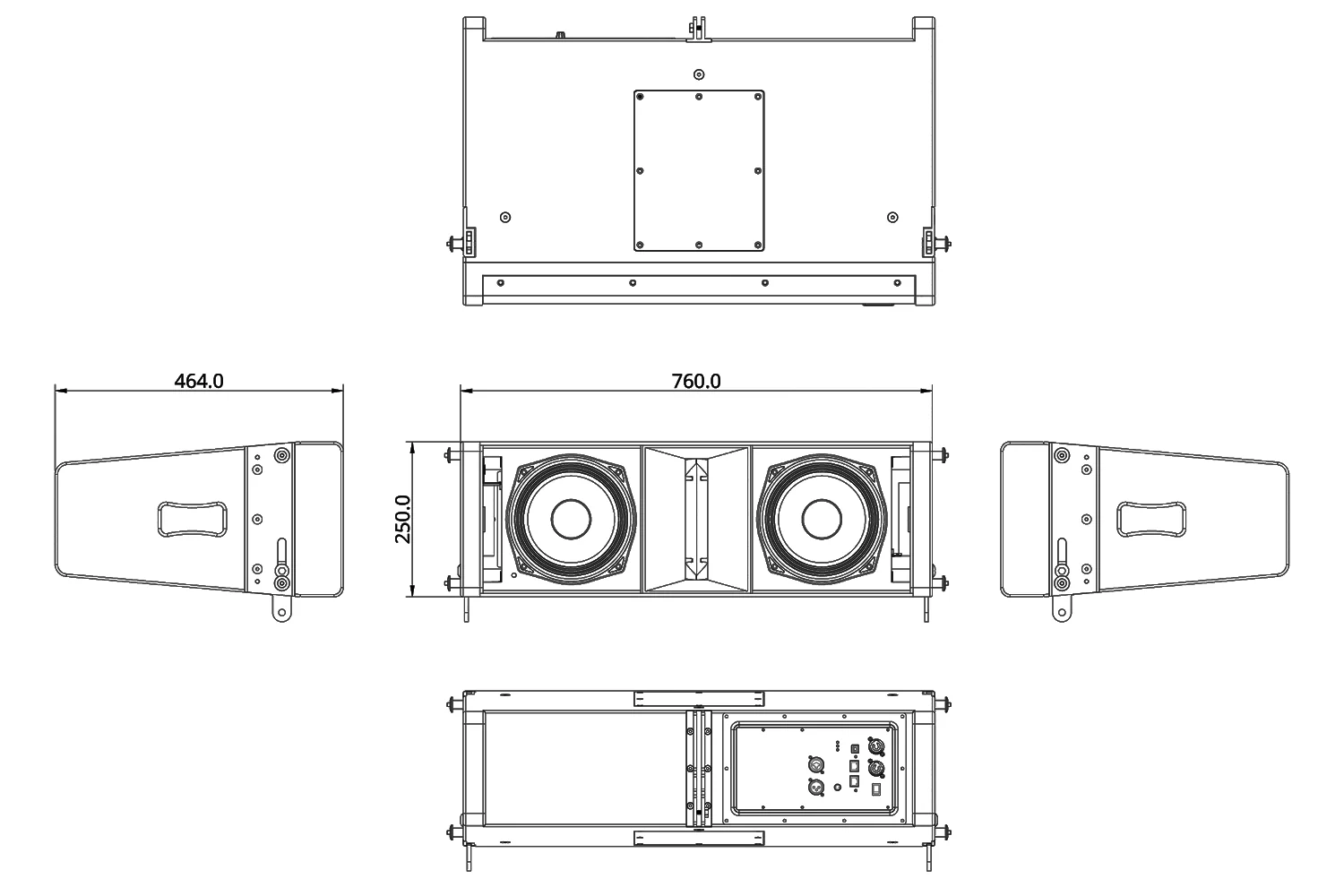

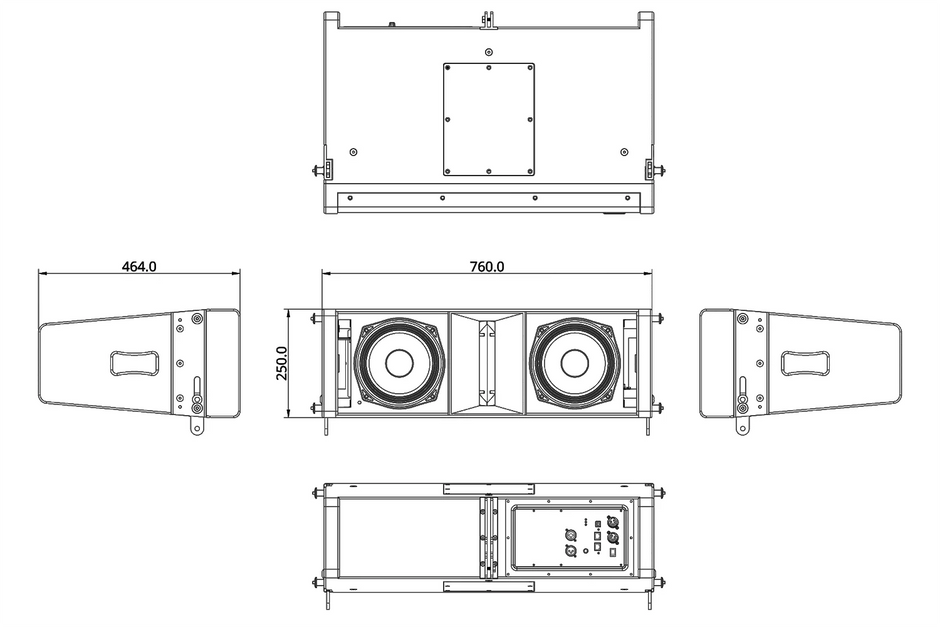

| Unpacked dimensions – Height | 250 mm / 9.84″ 181 mm / 7.1″ |
| Width (Front) | 760 mm / 29.92″ |
| Width (Back) | 760 mm / 29.92″ |
| Depth | 463.2 mm / 18.23″ |
| Packed Dimensions – Height | 320 mm / 12.6″ |
| Width (Front) | 830 mm / 32.7″ |
| Width (Back) | 830 mm / 32.7″ |
| Depth | 534 mm / 21.0″ |
| Net Weight (Kg / lbs) | 30.2 Kg / 66.4 lbs |
| Gross Weight (Kg / lbs) | 32.5 Kg / 71.5 lbs |
