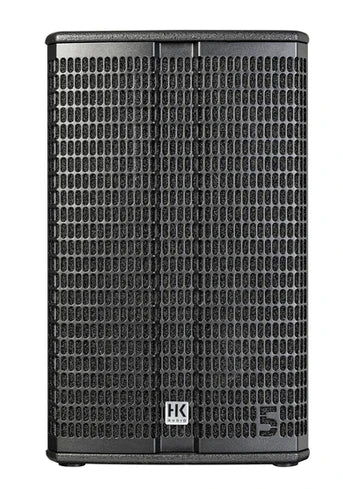

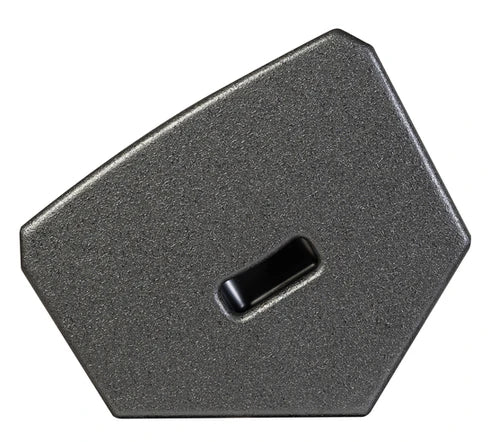

HK AUDIO LINEAR 5 MKII 112 XA

The LINEAR 5 MK II 112 XA is a compact, fl exible multifunctional mid/high unit with 12" woofer and tweeter with 1.7" voice coil. Its multifunctional enclosure shape with slanted monitor edge and a rotatable horn with a dispersion pattern of 80 x 60 make it a powerful solution for low feedback and directional monitor applications. Even on small stages and without turning the horn. The LINEAR 5 MK II 112 XA o ers impressive range with transparent, assertive sound and includes a remote-controllable high-performance DSP with integrated, directly selectable presets. The DSP Out can transmit the processed signal from the speaker to a non-networkcompatible speaker. The sturdy birch multiplex hybrid enclosure and a wide range of accessories make the LINEAR 5 MK II 112 XA a strong partner for bands and sound technicians, either as a transverse stage monitor or as a powerful system mid/high unit in conjunction with the LINEAR 5 MK II subwoofers.

• Compact, multifunctional enclosure shape with 31 monitor slope

• 1200 W peak power bi-amped Class-D power amplifier

• Rotatable horn with 80 x 60 dispersion pattern

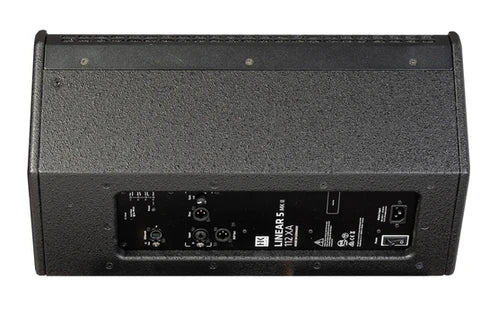

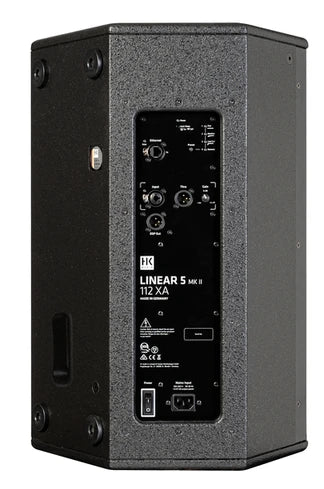

• Lockable, balanced XLR/TRS Combo input, balanced XLR output for analogue looping to an additional speaker

• Remote-controllable high-performance DSP with integrated directly selectable presets for the most common applications: Flat, Monitor, Low Cut, Remote

• Extensive DSP tools: fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute

• Professional, lockable EtherCon connector for connection to a Mac or PC to control the system

• DSP Out: balanced XLR output that transmits the processed signal from the speaker to a non-network-compatible speaker. The audio signal applied here can be extensively modified using the DSP CONTROL software

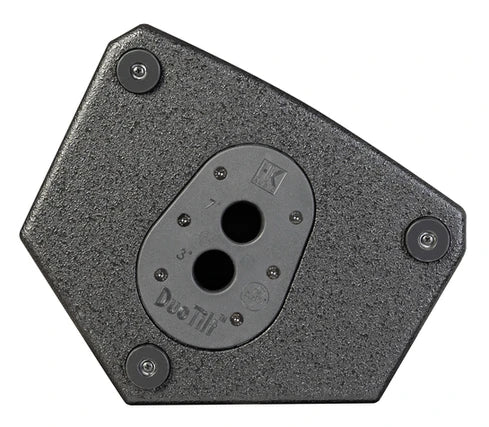

• HK AUDIO DuoTilt with 3 or 7 inclination

• Three reinforced M8 (AP-8) mounting points

• Lockable V-Lock mains cable

• Made in Germany
