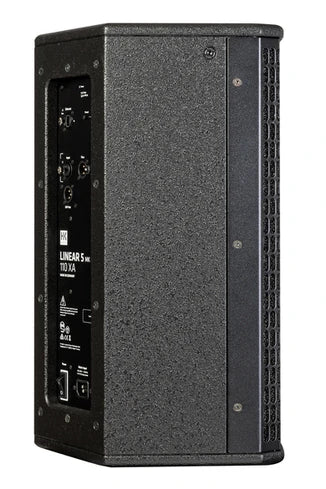

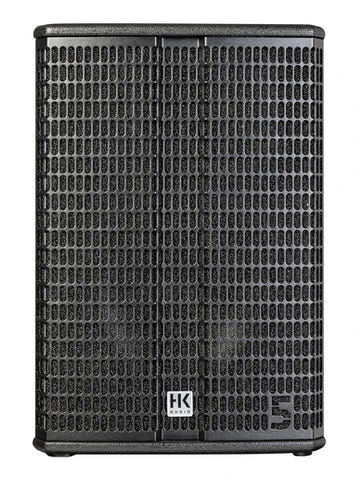

HK AUDIO LINEAR 5 MKII 110 XA

The LINEAR 5 MK II 110 XA is a compact, fl exible multifunctional mid/ high unit with 10" woofer and tweeter with 1.4" voice coil. With its multifunctional enclosure shape with slanted monitor edge and a rotatable horn with a dispersion pattern of 80 x 60, it covers an enormously wide range of system confi gurations. Its space-saving dimensions and narrow, horizontal dispersion allow low feedback, directional monitoring, even on small stages even without turning the horn. In addition to crystal-clear, assertive sound and impressive range, the LINEAR 5 MK II 110 XA features a remote-controllable high-performance DSP with integrated, directly selectable presets and DSP Out, which can route the processed signal from the speaker to a non-networked speaker, as well as a wide range of accessories. The sturdy birch multiplex hybrid enclosure makes the LINEAR 5 MK II 110 XA a strong partner for bands and sound technicians either as a transverse stage monitor or as a powerful system mid/high unit together with the LINEAR 5 MK II subwoofers.

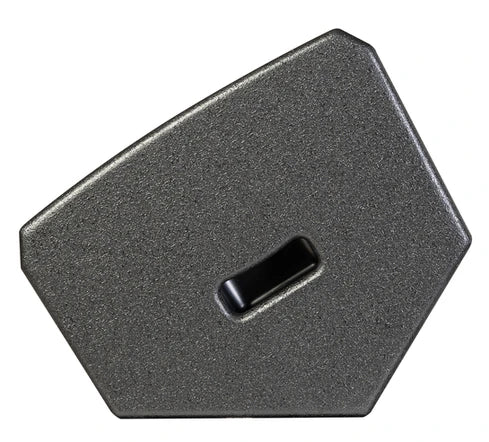

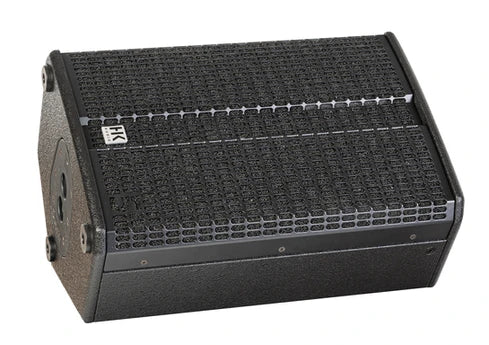

• Compact, multifunctional enclosure shape with 31 monitor slope

• 1200 W peak power bi-amped Class-D power amplifier

• Rotatable horn with 80 x 60 dispersion pattern

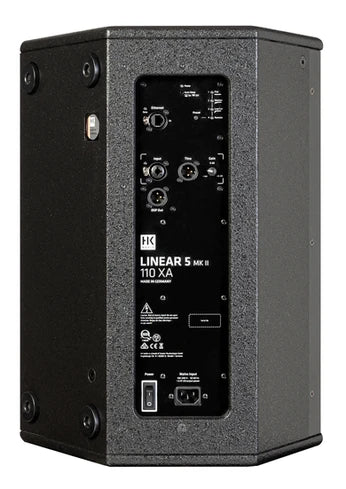

• Lockable, balanced XLR/TRS Combo input, balanced XLR output for analogue looping to an additional speaker

• Remote-controllable high-performance DSP with integrated directly selectable presets for the most common applications: Flat, Monitor, Low Cut, Remote

• Extensive DSP tools: fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute

• Professional, lockable EtherCon connector for connection to a Mac or PC to control the system

• DSP Out: balanced XLR output that transmits the processed signal from the speaker to a non-network-compatible speaker. The audio signal applied here can be extensively modified using the DSP CONTROL software

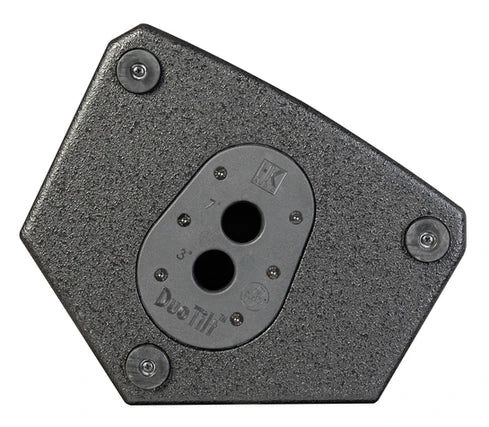

• HK AUDIO DuoTilt with 3 or 7 inclination

• Three reinforced M8 (AP-8) mounting points

• Lockable V-Lock mains cable

• Made in Germany
